Developed to satisfy the requirements of the
Pilotseal
Sheet Jointing
most demanding applications

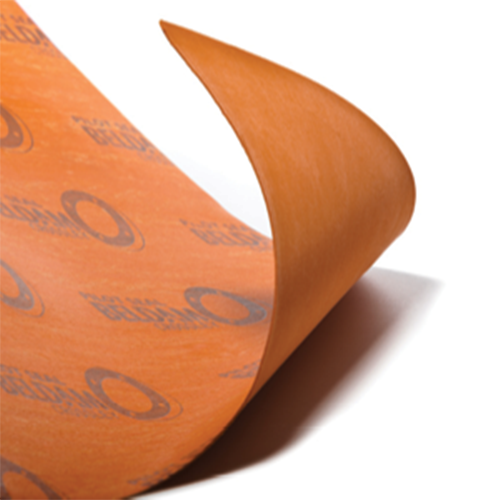

Beldam Crossley PILOTSEAL sheet jointing and rubber products have been developed to satisfy the requirements of the most demanding industrial sealing applications.
PILOTSEAL is supplied from a standard range of jointing and gasket types. Requirements beyond the scope of the standard range can be accommodated after technical review and consideration. PILOTSEAL is also supplied in sheet format. The standard range comprises of:
- Compressed non-asbestos fibre sheet for general service applications, steam and oils
- Filled and expanded PTFE sheet for severe chemical duties
- Reinforced graphite and mica for high-temperature solutions
- Industrial rubber for low pressure and temperature solutions
| Packing Style | Product Description | Max Temp Air | Max Temp Steam | Water | Oils | Weather / Ozone | Food |
|---|---|---|---|---|---|---|---|
| Pilotseal 34 | Grade X material for arduous general service applications | 400 | 250 | ** | ** | ** | |
| Pilotseal 125 | Grade Y material for light industrial duties | 200 | 180 | ** | ** | ** | |
| Pilotseal 178 | Superior quality and performance Grade Y material for general service | 400 | 200 | ** | ** | ** | |
| Pilotseal 172 | Excellent quality Grade Y material with anti-stick coating | 400 | 200 | ** | ** | ** | |
| Pilotseal 500 | Soft and comfortable expanded PTFE for most chemical duties | 260 | *** | *** | *** | *** | |
| Pilotseal 550 | Red filled PTFE for use with most chemicals, acids and alkalis | 260 | *** | *** | *** | *** | |
| Pilotseal 570 | Blue filled PTFE for light bolt loading applications | 260 | *** | *** | *** | *** | |
| Pilotseal 590 | White filled PTFE for a broad range of chemicals duties | 260 | *** | *** | *** | *** | |
| Pilotseal 2T | Exfoliated graphite with stainless steel tanged inset for additional strength | 450 | 500+ | *** | *** | *** | *** |
| Pilotseal 201 | Mica based jointing for use with extremely hot gases | 1000 | 280 | * | * | *** | |
| Pilotseal EPDM | Rubber sheet and rolls with good chemical resistance | 100 | ** | ** | ** | ||
| Pilotseal FKM | Excellent quality rubber roll and sheet with superior weather and ozone resistance | 210 | ** | ** | ** | ||
| Pilotseal Commercial | Economical rubber grade for use in light service industrial applications | 70 | ** | ** | ** | ||
| Pilotseal Neoprene | Universal rubber compound with excellent resistance to flame, oils, water and weather | 70 | ** | ** | ** | ||
| Pilotseal Nitrile | A universal rubber compound with excellent resistance to flame, oils, abrasion and ozone | 70 | ** | ** | ** |
Key
***
**
*
Blank
Primary Recommendation
Secondary Recommendation
Suitable depending on the condition
Not Recommended
