Lubricated traditional marine packing.

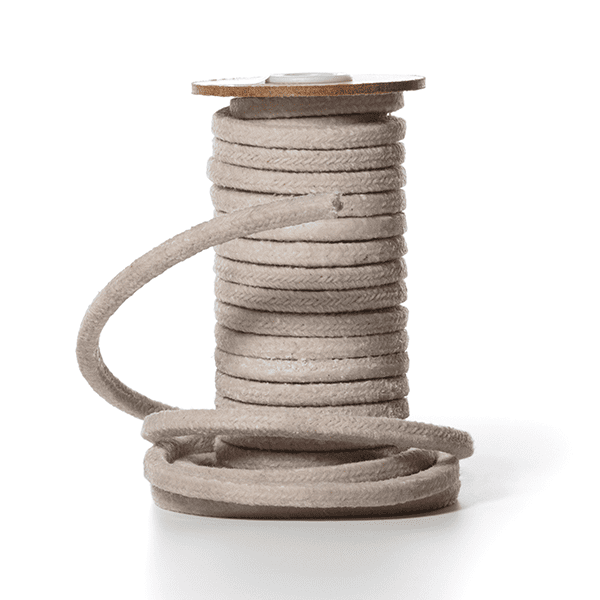

Pilotpack 76
Description
PILOTPACK 76 is a firm packing made from the finest quality yarn blended with lubricants to provide a high wet strength when in contact with seawater. PILOTPACK 76 is an excellent general service packing for use in fresh or seawater and is an ideal choice for marine and water transfer applications.
It can be used in rotary, reciprocating & valve applications and on slow running stern shafts.
Applications
- Natural fibre based packing designed especially for fresh & seawater applications
- Suitable for slow running, stern shaft applications
- Very easy to install, even in restricted areas
- Cost-effective packing for most marine duties
Chemical Compatibilities
- For the pH range 5-9, the packing is chemically inert.
Sizes Available
All square sections from 3mm (1/8”) to 25mm (1”) are generally available from stock and supplied in differing lengths depending on the cross-section, Larger and rectangular sections can be manufactured to order. Packing can also be supplied in preformed or die formed rings.
Rotating applications
Speed: 10 m/s
Temperature range: to 120˚C
Maximum pressure: 25 bar
Valve applications
Speed: 2 m/s
Temperature range: to 120˚C
Maximum pressure: 100 bar
Reciprocating applications
Speed: 2 m/s
Temperature range: to 120˚C
Maximum pressure: 70 bar
