Pilotseal 125

Description

Description

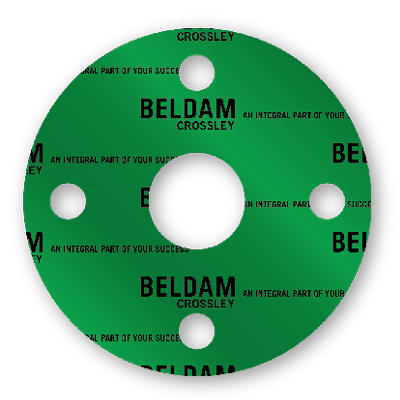

PILOTSEAL 125 is a compressed sheet material based on aramid fibre with a nitrile rubber binder

Applications
PILOTSEAL 125 is a general service material for use on many applications including hot and cold water, low pressure steam, oils, fuels, gases and a range of chemicals

Approvals and Compliance
WRAS Potable Water

Sizes Available
Thickness Range 0.4mm to 6.0mm
Standard Sheet Size 1.5m x 1.5m

Physical Properties

Density
1.95g/cc
Tensile Strength
ASTM F152 11MPa
Compression
ASTM F36 8%
Recovery
ASTM F36 50% Min
Residual Stress
BS 7531 (300°C) 17MPa DIN 52913 23MPa
Gas Leakage
BS 7531 <1.0cc/min
ASTM Oil 1
Thickness Increase 1.0%
IRM 903 Oil
Thickness Increase 2.0%
ASTM Fuel B
Thickness Increase 3.0%

PTFE Design

Beldam Crossley can create PTFE products to your specification, creating a product with the correct PTFE grade material that works best for your application.

Contact our team of design engineers with your requirements and see how we can help you.

Crossflon®

Beldam Crossley has been moulding PTFE for over half a century. We have since developed a wide range of High Performance Crossflon® materials, each suited to a specific application.

Pilotseal 125

Pilotseal 125

Description

Description

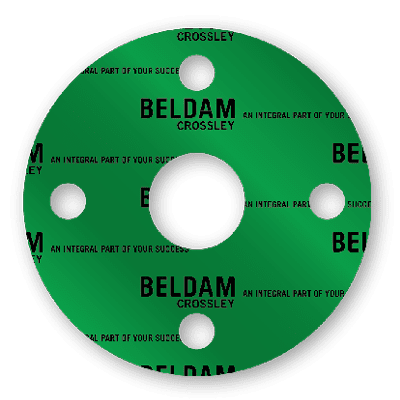

PILOTSEAL 125 is a compressed sheet material based on aramid fibre with a nitrile rubber binder
