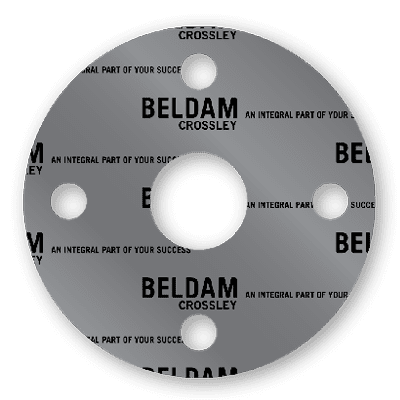

Pilotseal 172

Description

Description
PILOTSEAL 172 is a good quality compressed sheet based on aramid fibres with a nitrile rubber binder. The graphite finish provides excellent anti-stick properties.

Applications
PILOTSEAL 172 is suitable for use with hot and cold water, steam, fuels, oils, solvents and a wide range of chemicals.

Approvals and Compliance
DIN-DVGW (Gas Industry)
WRAS Potable Water
BS7531 Grade Y

Sizes Available
Thickness Range 0.25mm to 6.0mm
Standard Sheet Size 1.5m x 1.5m

Physical Properties

Density
2.0g/cc
Tensile Strength
ASTM F152 12MPa
Compression
ASTM F36 9%
Recovery
ASTM F36 50% Min
Residual Stress
BS 7531 (300°C) 23MPa DIN 52913 29MPa
Gas Leakage
BS 7531 <1.0cc/min
ASTM Oil 1
Thickness Increase 2.0%
IRM 903
Oil Thickness Increase 5.0%
ASTM Fuel B
Thickness Increase 4.0%
