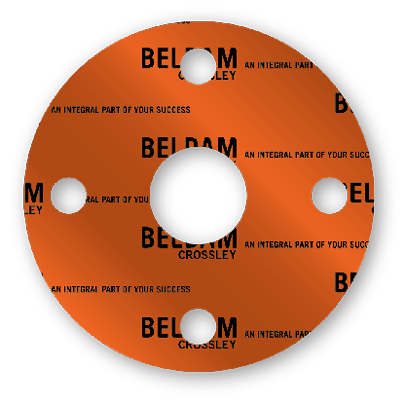

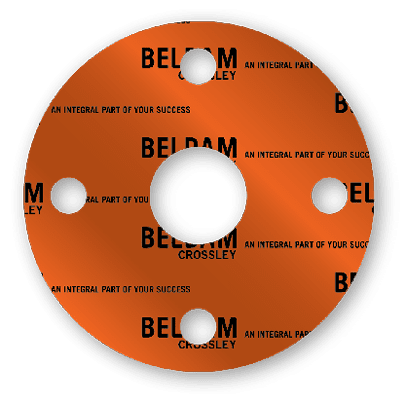

Pilotseal 178

Description

Description
PILOTSEAL 178 is a jointing material consisting of high quality compressed fibre manufactured from a blend of special heat resistant fibres with an elastomeric binder.

Applications
PILOTSEAL 178 is suitable for use with hot and cold water, steam, fuels, oils and gases

Approvals and Compliance
DIN-DVGW (Gas Industry)
WRAS Potable Water
BS7531 Grade Y

Sizes Available
Thickness Range                    0.4mm to 6.0mm
Standard Sheet Size              1.5m x 1.5m

Physical Properties

Density
2.0g/cc
Tensile Strength
ASTM F152 12MPa
Compression
ASTM F36 9%
Recovery
ASTM F36 50% Min
Residual Stress
BS 7531 (300°C) 23MPa DIN 52913 29MPa
Gas Leakage
BS 7531 <1.0cc/min
ASTM Oil 1
Thickness Increase 2.0%
IRM 903 Oil
Thickness Increase 5.0%
ASTM Fuel B
Thickness Increase 4.0%
