Pilotseal 2T

Description

Description

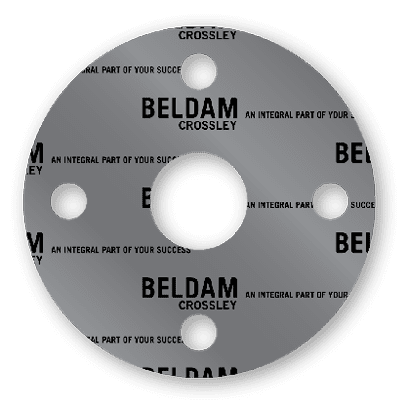

PILOTSEAL 2T is constructed from exfoliated graphite laminated and reinforced with a tanged stainless steel 316 insert. The result of the adhesive free lamination process is a robust gasket material with excellent mechanical strength.

Applications
PILOTSEAL 2T is ideally suited for applications where both high operating temperatures and a wide chemical resistance are required.
The high mechanical strength also ensures that PILOTSEAL 2T gaskets can seal high internal pressures at high temperatures.

Approvals and Compliance
BAM for oxygen

Sizes Available
Thickness Range 1.0mm to 3.0mm
Standard Sheet Size 1.5m x 1.5m

Physical Properties

Density
1.0g/cc
Compression
ASTM F36A-66 30-35%
Recovery
ASTM F36A-66 15-20% Min
Residual Stress
 DIN 52913(300°C) >45% MPa
Number of inserts
1
Ash content Max
2%
Chlorine content Max
50ppm
