Available in sheet and rolls and is typically
used in applications where resistance to
Ozone, Ageing and UV are required.

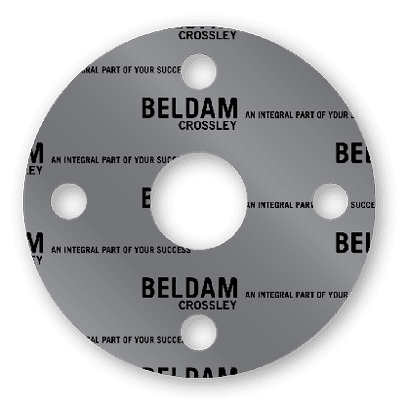

Pilotseal EPDM
Description
PILOTSEAL EPDM is available in sheet and rolls and is typically used in applications where resistance to Ozone, Ageing and UV are required.
Applications and Characteristics
- Food Use Not recommended
- Water Use Fair
- Mineral Oil Use Not recommended
- Abrasion resistance Good
- Ozone weather resistance Excellent
- Flame retardancy Not recommended
- Electrical resistance Not recommended
- General Purpose Not recommended
Approvals and Compliance
WRAS approval for cold water only
Sizes Available
- Thickness Range 1 to 6mm 10m rolls
- Thickness Range 8 to 25mm 5m rolls
- Standard Width 1.4m
* Typical Shore Hardness range 40—70 also available
Physical Properties
Base Polymer |
EPDM |
Indentation Hardness |
BS903 Part A26 70IRHD –4 +5 |
Specific Gravity |
BS903 Part A1 1.22 g/cm3 |
Tensile Strength Min. |
BS903 Part A2 9MPa |
Elongation @ Break Min. |
BS903 Part A2 200% |
Min. Cont. Work Temp. |
– 15°C |
Max. Cont. Work Temp. |
100°C |
Max. Intermittent Work Temp. |
110°C |
Compression Set 70°C 22 Hours |
BS903 Part A6 20% |
