PTFE Skidway Configurations

We offer Crossflon® XF225 with dimples spread uniformly across the skidding surface. The purpose of the dimples is to retain Crossflon® XF500, an additional lubricant, during the construction periods and to assist in reducing the static and dynamic coefficient of friction.

Crossflon® skidway plates are generally manufactured with the edges of the Crossflon® XF225 chamfered to aid the transition of the timber skid shoes during a load-out or launch operation.

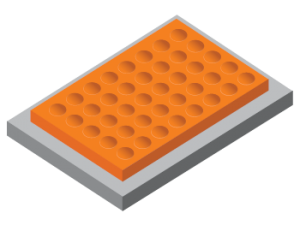

Crossflon® Skidway Plate Dimpled

Dimpled Skidway Plate

Typical Assembly:
2.5mm thick dimpled Crossflon® XF225 bonded to a 3mm thick carbon steel plate.

Typical Dimensions:
Crossflon® XF225: 950mm x 450mm.

Carbon Steel:
1000mm x 500mm.

Method of Installation:
Tack welding.

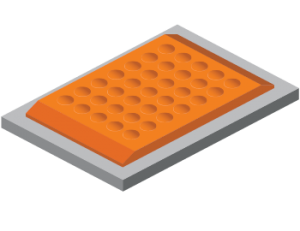

Crossflon® Skidway Plate Dimpled & Chamfered

Chafered Skidway Plate

Typical Assembly:
2.5mm thick dimpled Crossflon® XF225 bonded to a 3mm thick carbon steel plate.

Typical Dimensions:
Crossflon® XF225: 950mm x 450mm.

Carbon Steel:
1000mm x 500mm.

Method of Installation:
Tack welding.
